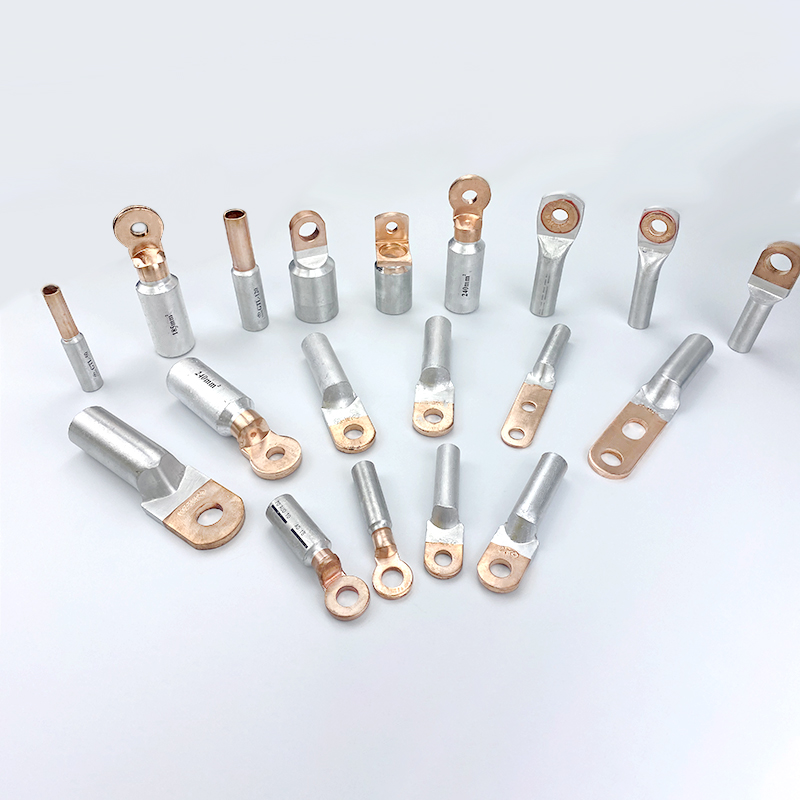

bimetallic hlaulos yog bimetallic thimble yog hom tshwj xeeb ntawm thimble rau txuas aluminium cable nrog tooj liab npav lossis tooj liab terminals.

Hauv tsab xov xwm no, peb yuav tham txog cov qauv thiab kev siv ntawmbimetallic terminals.



Teeb meem nrog Cu/Al Joint

Aluminium oxide txheej yog tsim uas yog heev tiv taus tam sim no.The Jokoj heats li thiab ua rau hlawv ntawm cable thiab tom qab ntawd xaus rau hauv hluav taws.

Vim qhov sib txawv thermal coefficients ntawm Al & Cu, loosening ntawm kev sib koom ua ke tshwm sim



Bimetal Thimble Kev Tsim Kho:

Lub electrolytic forged tooj liab xibtes yog kev sib txhuam-welded rau electrolytic aluminium chim.Cu thiab Al molecules tau sib koom ua ke los tsim ib lub strong

thiab sib koom ua ke yog li ntawd ua tiav qhov kev hloov pauv tau zoo tshaj plaws

Oxidation nyob rau hauv lub cable lug yog tiv thaiv los ntawm kev tiv thaiv sab hauv nto nrog ib tug tshwj xeeb roj nrog ib tug heev siab poob taw tes.



Daim ntawv thov Bimetal Thimble

Lub bimetallic cable lugs connectors yog haum rau txuas LV, MV thiab HV tso tseg aluminium conductor cables suav nrog 11kV-33kV nruab nrab

hluav taws xob nrog tus neeg xyuas pib hla ntu ntu 10-630 m²
